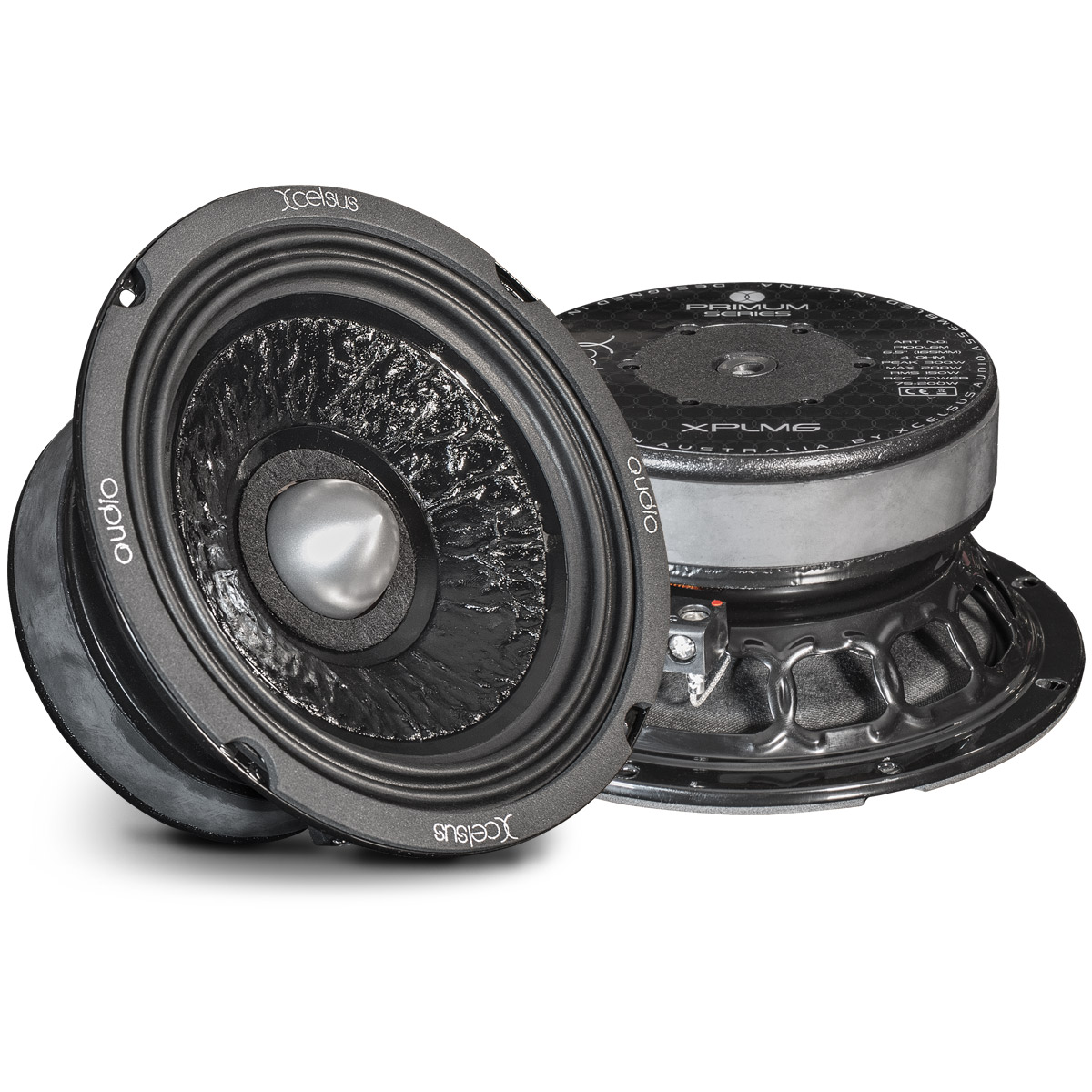

The 6.5” driver was designed around a lightweight, high-quality, non-pressed paper cone that is coupled to a 38mm high-temperature air-cooled voice coil.
Featured is a bullet-contoured phase plug that is attached to an oversize magnetic motor system with a copper shorting cap.
When paired with our matching XPLT28W waive guide allowing this driver to affordably deliver a HiFi quality sound experience at extreme volume levels.
|Installation depth||71 mm|
|Mounting hole||144 mm|
|Magnet size||130 mm|
|Sensitivity||94 dB / 1W|
|Operating frequency range||80-7000 Hz|
|Maximum power||300 watts|
|Power Rating (RMS)||125 watts|
|Outside Diameter Midbass||6.5″(200 mm)|
