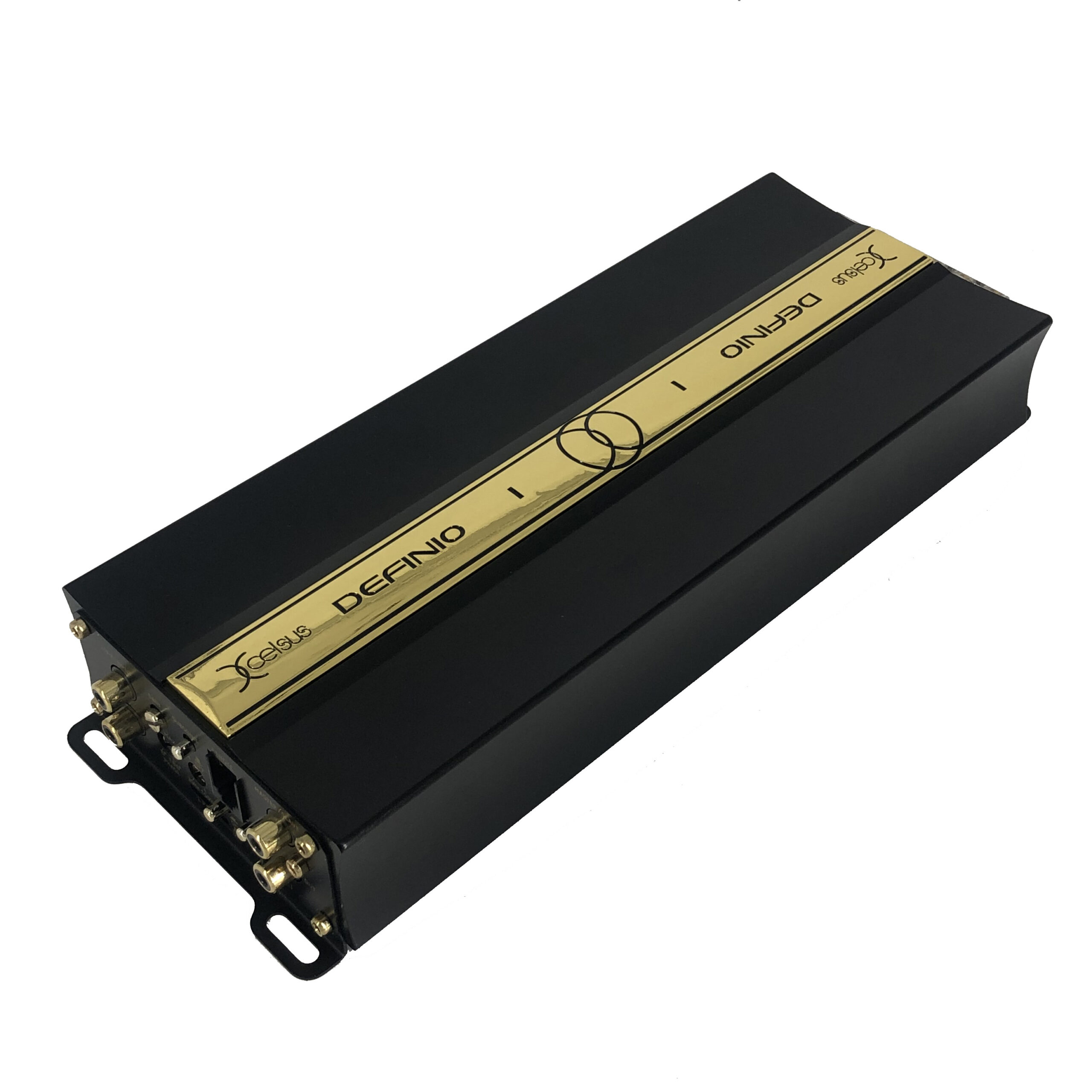

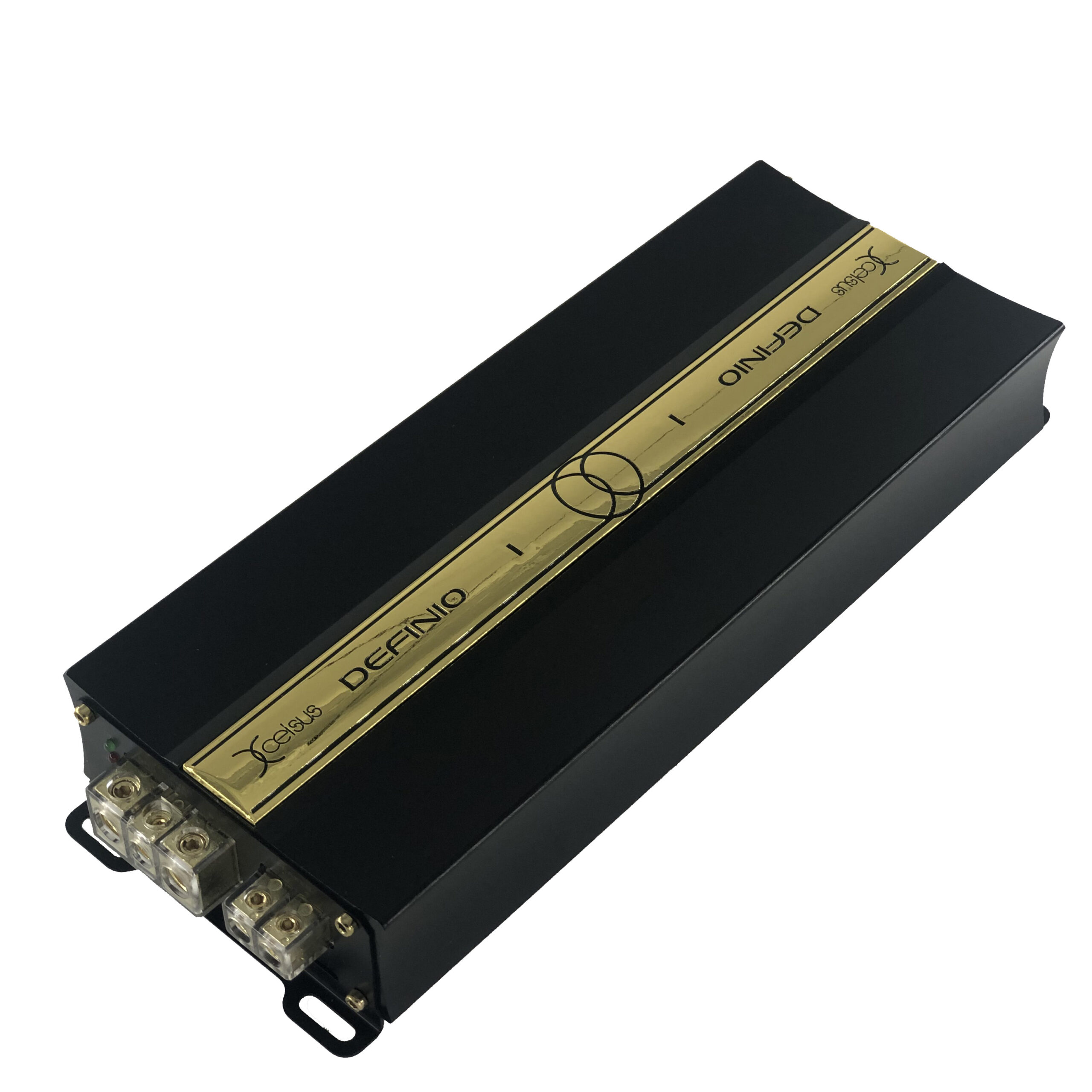

DEFINIO 1 – DEFINIO SERIES DIGITAL MONO AMPLIFIER

Our new Amplifier DEFINIO 1 is a Mono Class D Amplifier delivering 750 WRMS @ 1 Ohm. For those requiring even more power another DEFINIO 1 can be linked together to produce 1500WRMS @ 2 Ohms.

DEFINIO 1 combines the best from Class D as: small size high transient (Dynamic) response and high power concern to the size.

With this Amplifier, we offer Class AB SOUND QUALITY and low distortion. Definio 1 is a very potent competitor to other competition Amplifiers.

Dimensions (mm) : 41,8 x 104 x 270

Categories: ,

Description

Specifications
Number of channels  1
Amplifier class  Full Range Digital
Power at 4 Ohm (RMS)  280 watts
Power at 2 Ohm (RMS)  470 watts
Power at 1 Ohm (RMS)  750 watts
Signal to noise ratio, A-weighted   92 dB
Damping factor  >154
THD @ 5W, 1 kHz  <0,02%
Frequency response  10 Hz- 30 kHz
Input impedance, low level  5 kohm
Input sensitivity  0.2-6 V

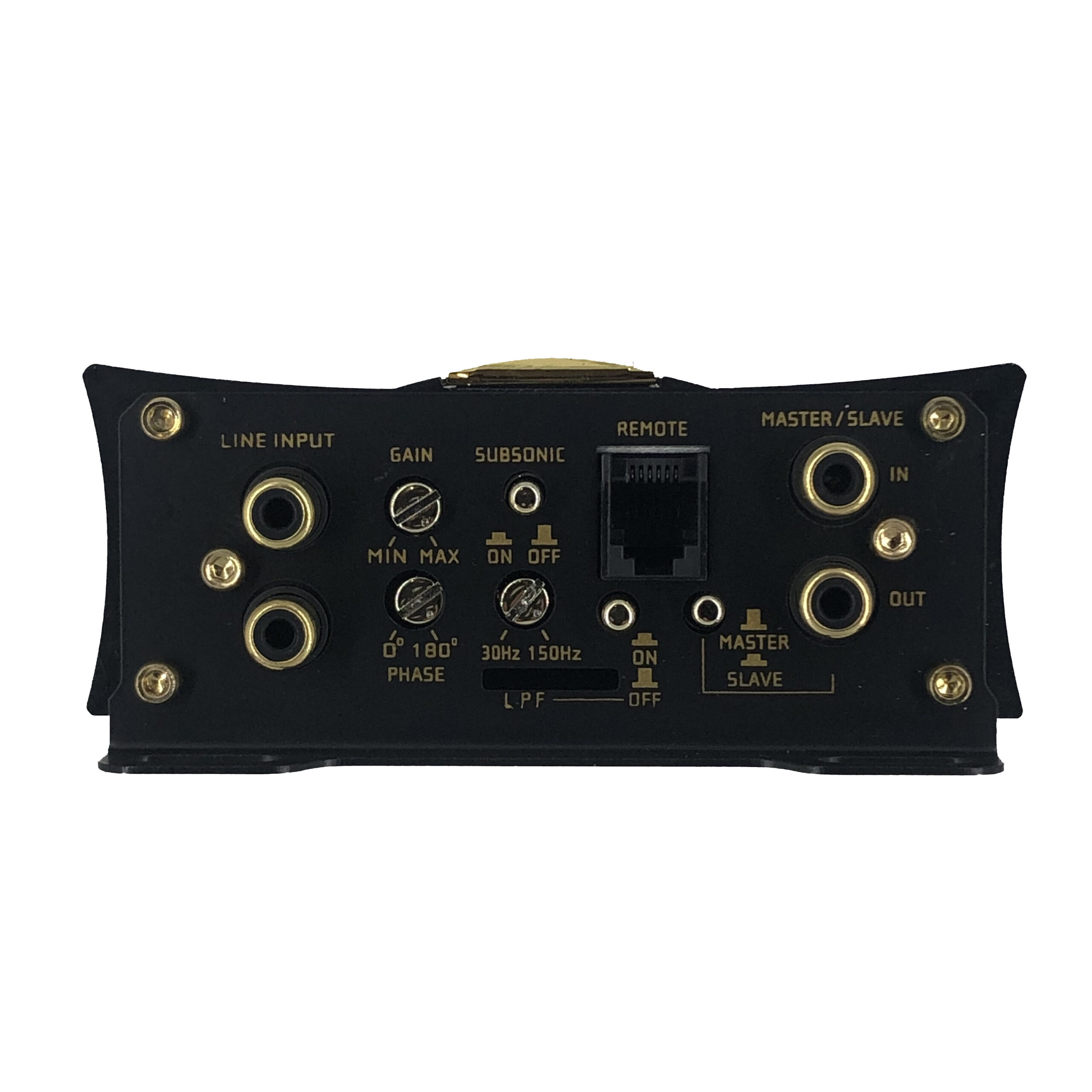

Filter low-pass adjustable  30-150 Hz @ 24dB slope
Filter sub-sonic fixed  28 Hz
Power consumption, idle  0.7 A (0.35 A)
Power consumption Max 90 A
Fuse  use external fuse   80 A
Power supply  12 Volt
