Description

The design premise behind this speaker was to provide a rich full sound at an affordable price.

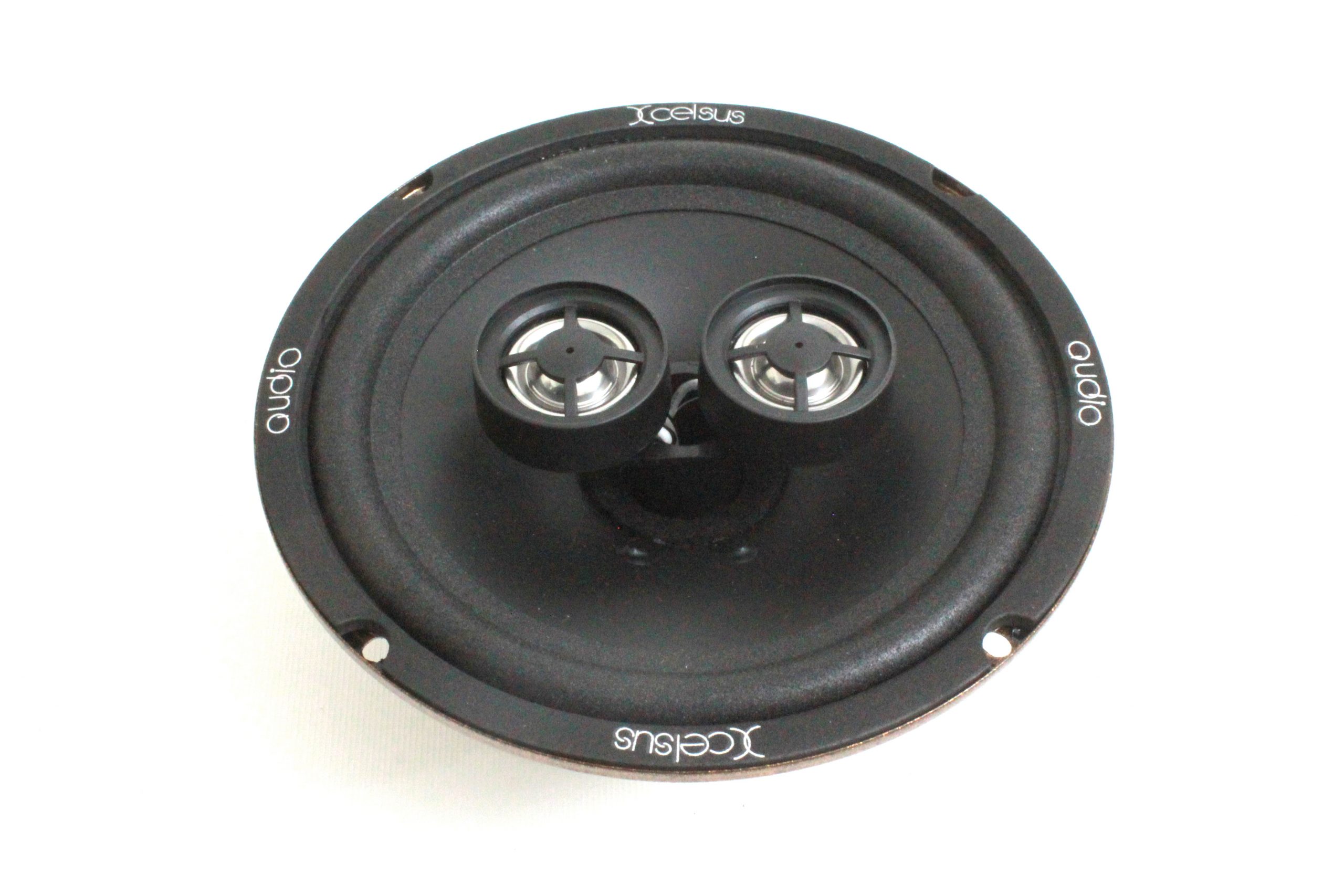

This was done by incorporating two pieces of 13mm tweeter into the design which is not commonly seen in other brands of coaxial speakers. The result is an excellent sounding speaker that can be run by a high-power head unit or amplifier.

The XP620 was designed as an excellent factory upgrade for today’s modern vehicles. The forward-mounted dual tweeter array came about after extensive testing in a multitude of real-world conditions where a speaker is mounted deep behind a door or trim panel often dampening the treble of a traditional coaxial speaker.

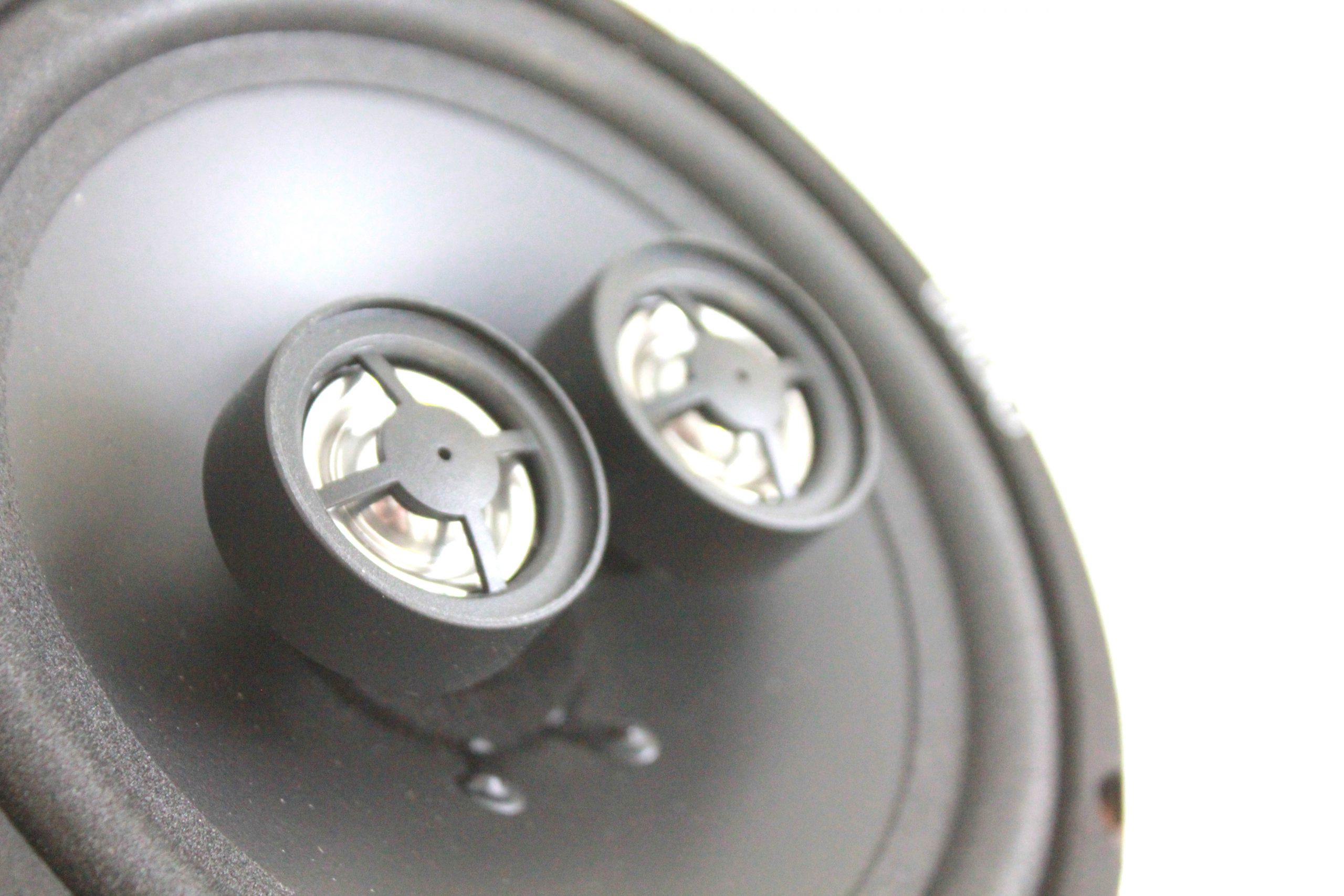

The XP620’s dual Mylar 16mm dome tweeter array remains clear, precise and in unison with the bass driver for a rich and full musical experience no matter the location. These speakers will not only outstand you in a demo board but also in the real world of your vehicle where it counts.

Specifications

Tweeter	Dual 16 mm Mylar (0,63″) with neo magnet array
Woofer size	16,5 cm (6,5″)
Power handling capacity	50 W RMS / 80 W max
Impedance	4 ohm
Frequency range	50 – 20.000 Hz
Sensitivity	92 dB (1W/1m)

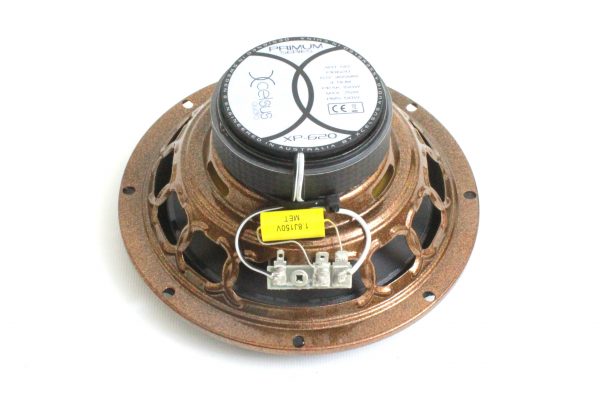

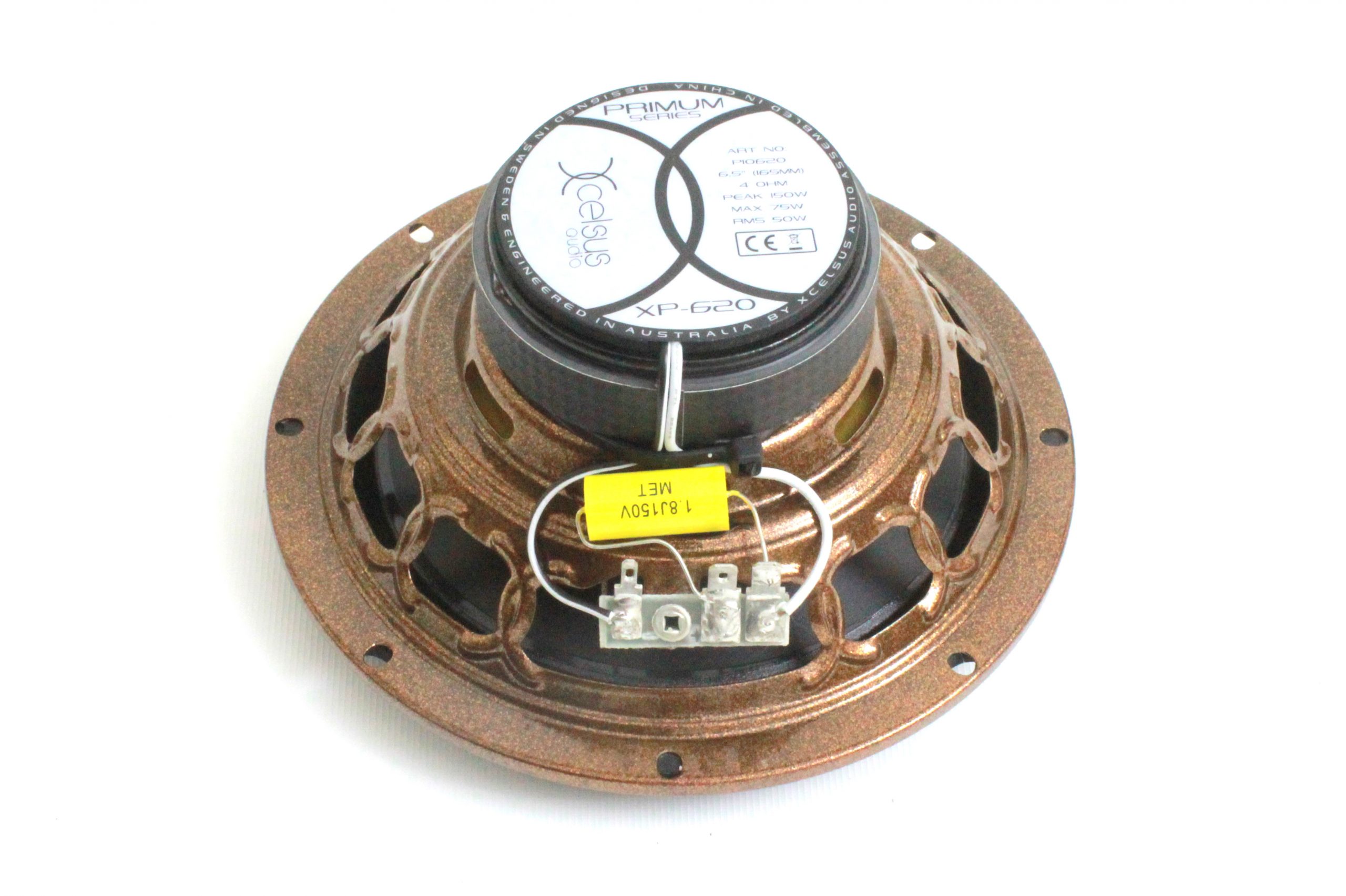

Crossover	MXP Capacitor with 6 dB slope
Outer diameter of woofer	165 mm (6,5″)
Magnet size	80 mm (3,15″)
Mounting depth	52 mm ( 2″)
Mounting hole	145 mm (5,7″)
Weight	2,4 kg / 5,3 lbs
