Description

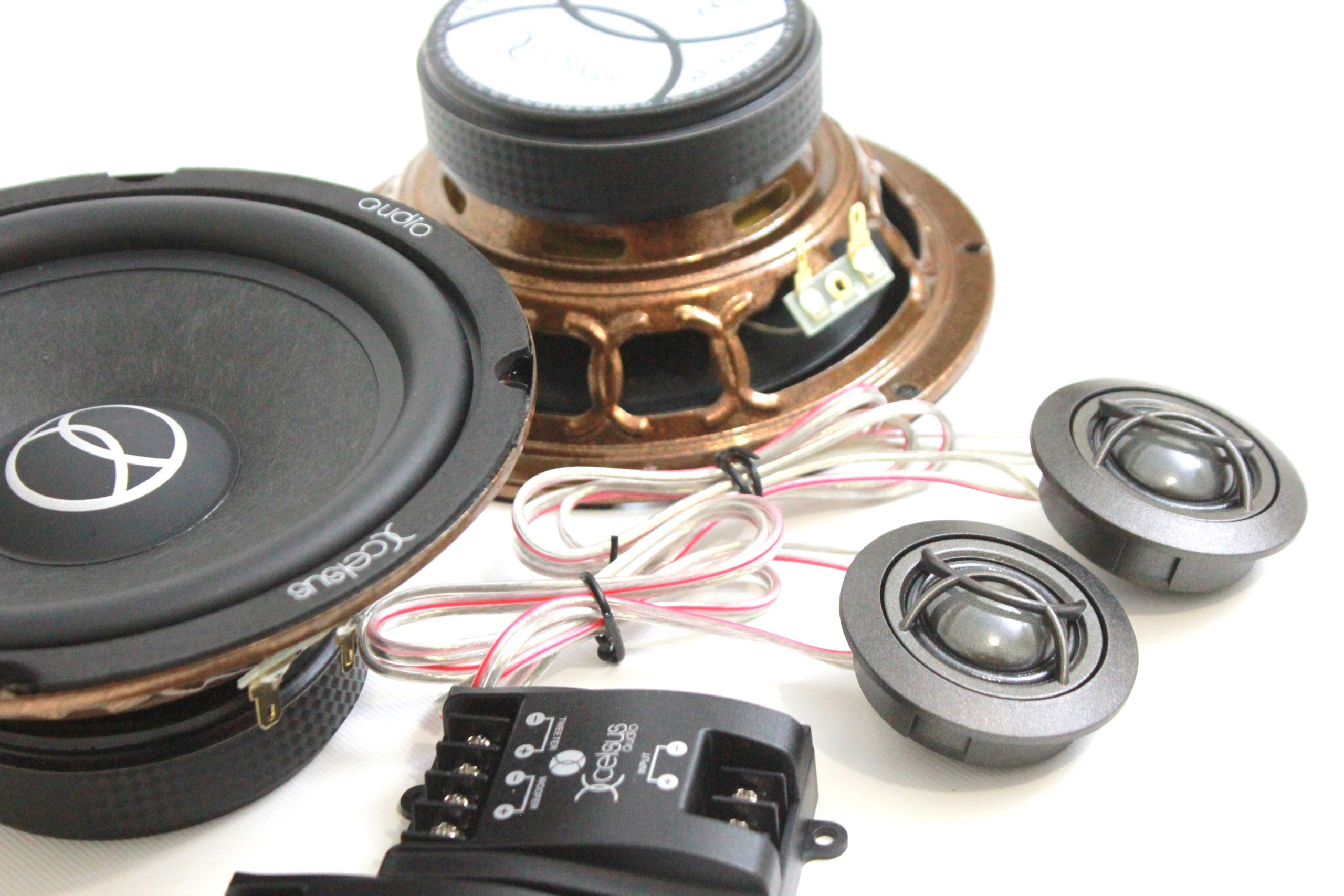

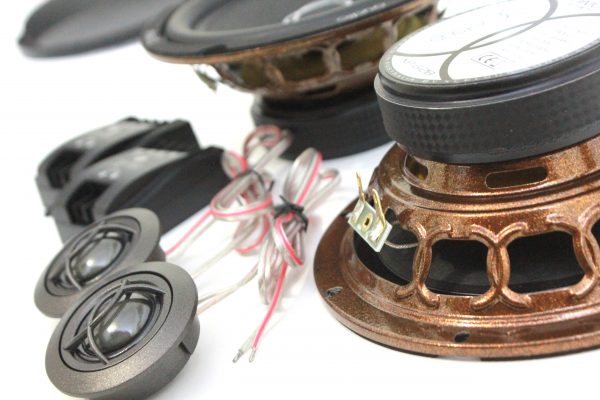

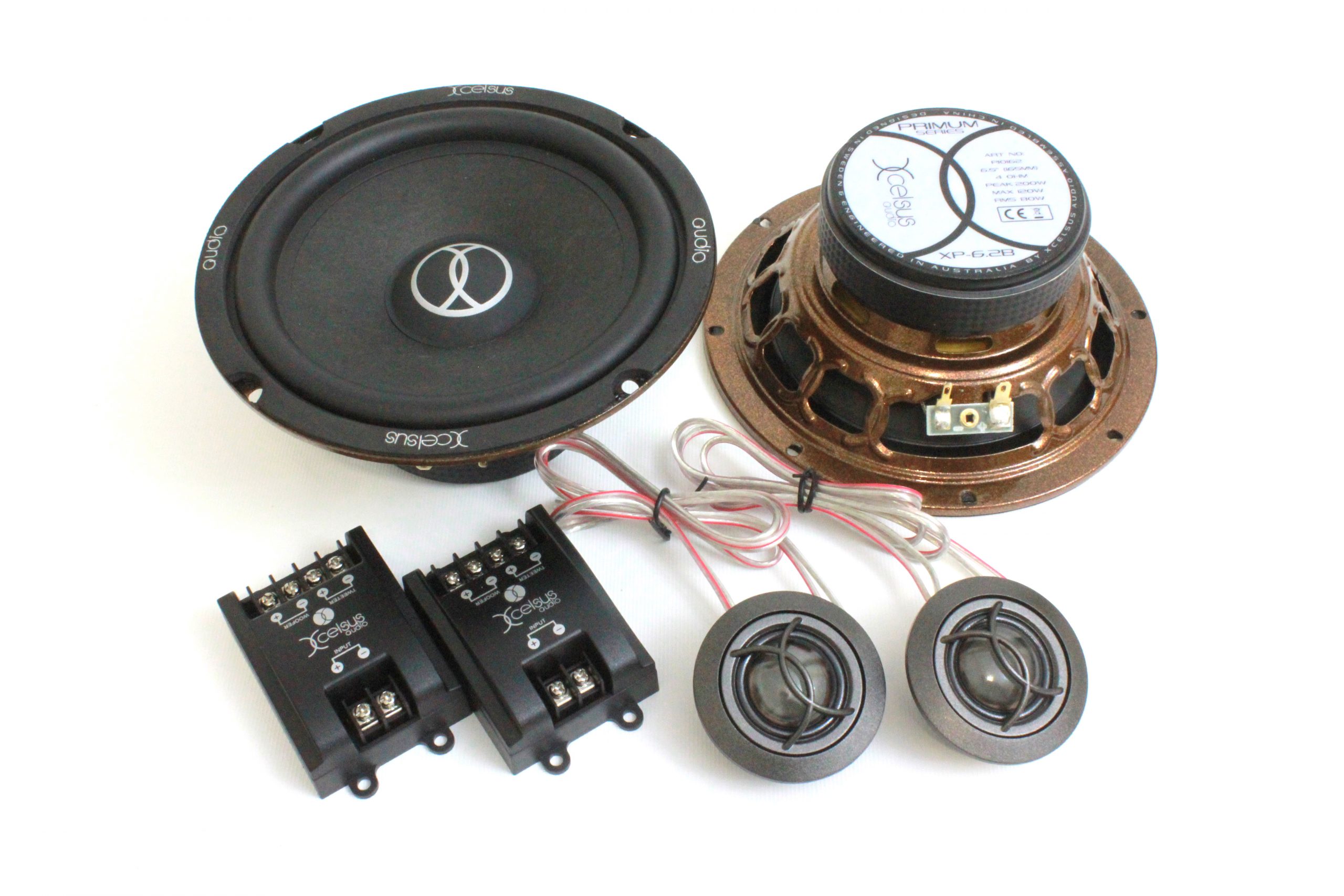

The design premise behind this set was to achieve a smooth & well-balanced natural sound that would truthfully reproduce a large variety of music types.
This is no easy feat, and our goal was only achieved after successfully striking the optimal balance between moving mass, surround, cone, voice coil, winding length, spider, and magnet power.

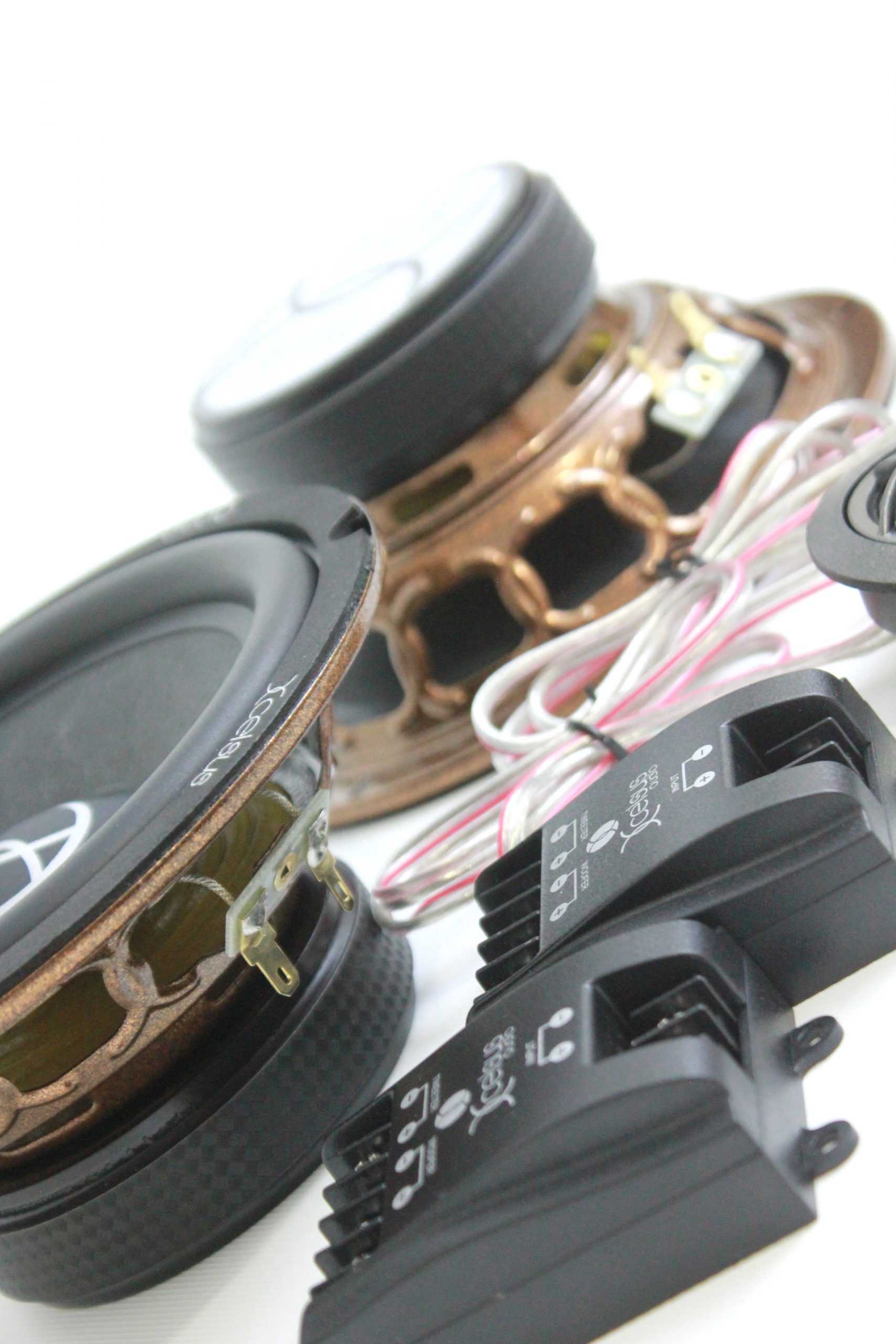

The cone is made from semi non-pressed paper coupled to a 25mm hi-temperature voice coil & is controlled by an optimized motor design.

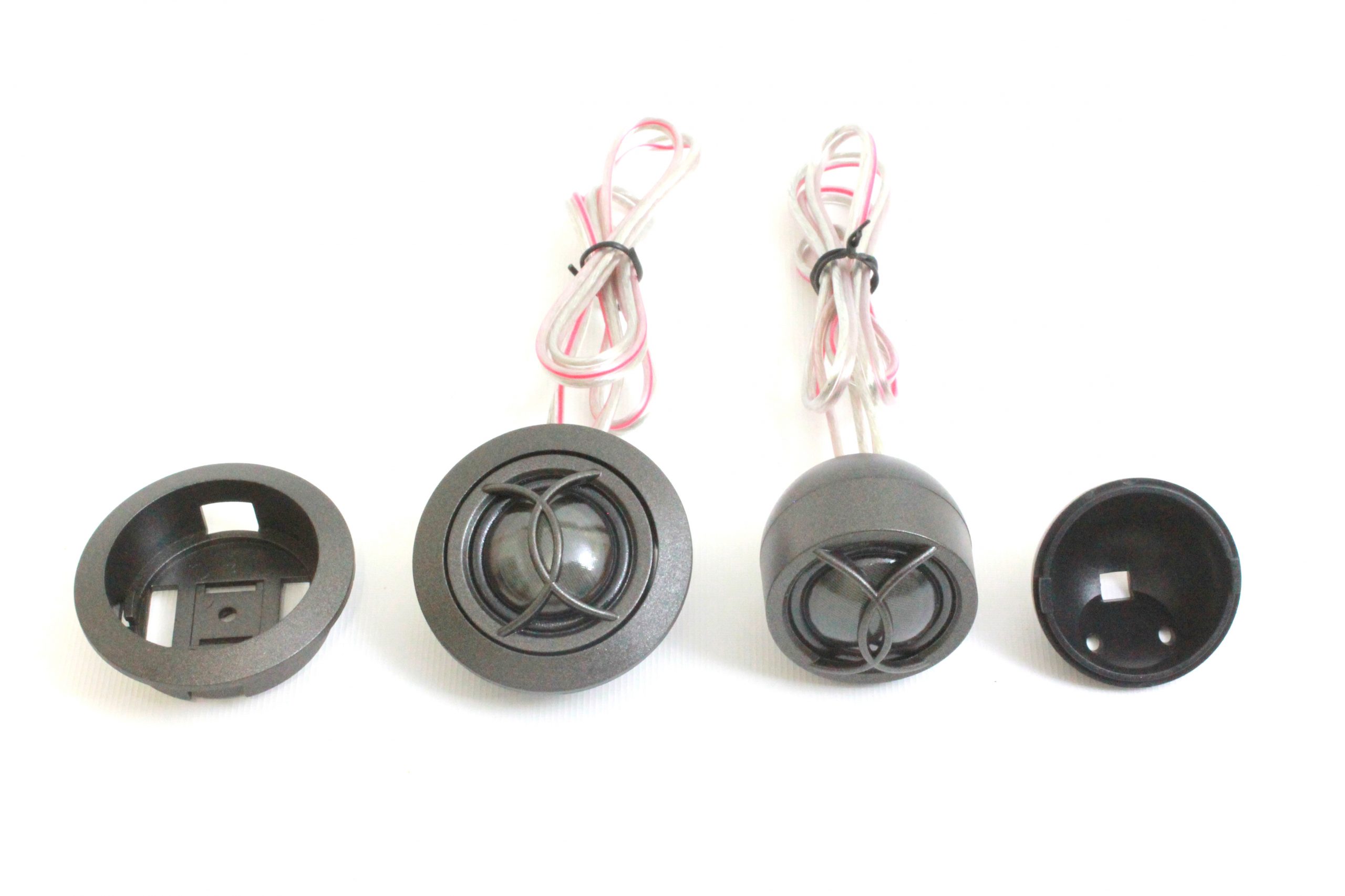

The tweeter is a 25mm soft textile dome housed in a liquid-cooled neodymium motor. Its compact size allows for ease of fitment in a large variety of factory tweeter locations.

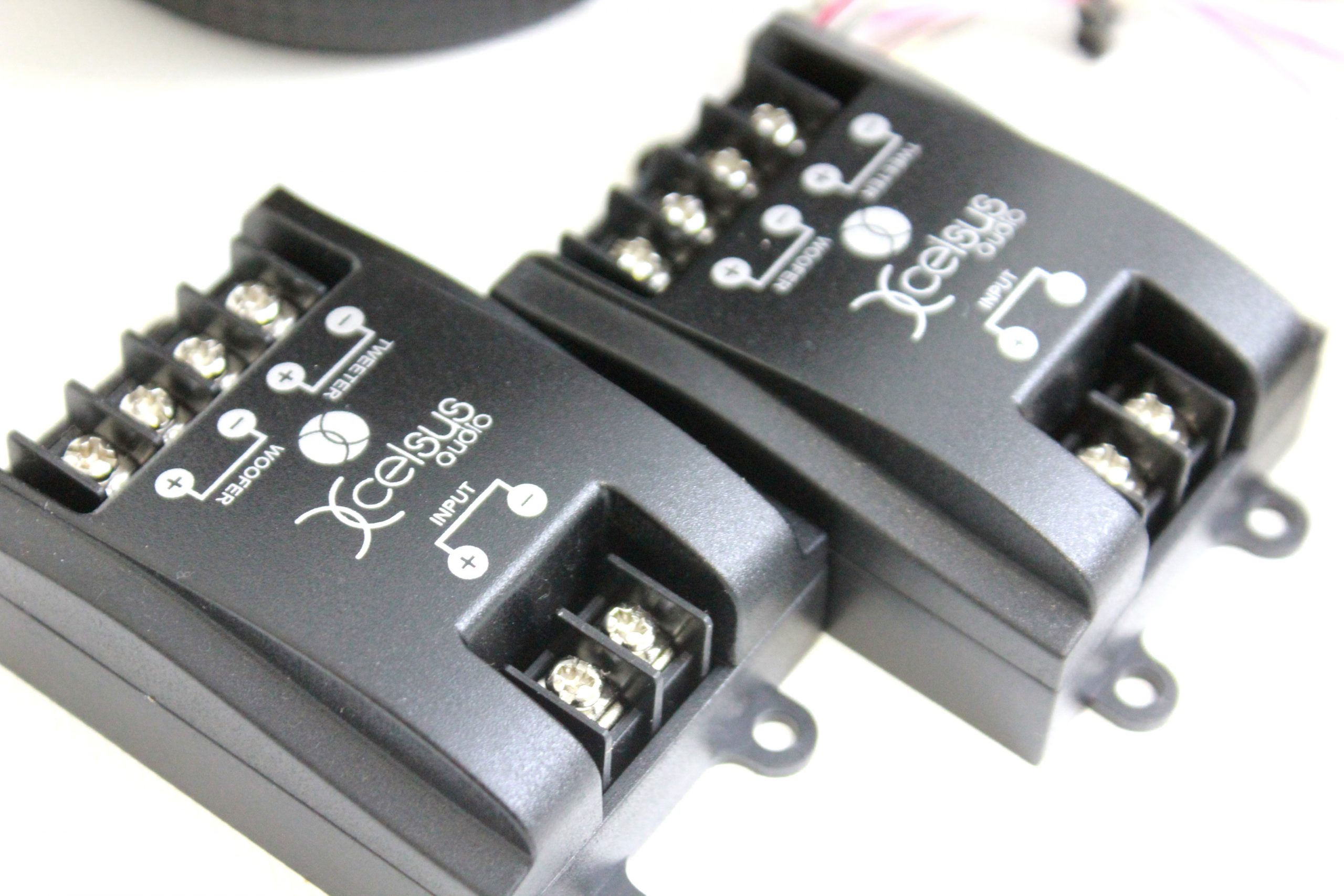

Crossover components are of high quality & feature or Phase Shift Technology. The result is an exceptionally good-sounding component that will run perfectly well from a hi-power head unit or amplifier.
Specifications
| Woofer size | 16,5 cm (6,5″) |
| Tweeter | 25 mm soft textile dome tweeter |
| Power handling capacity | 80 W RMS / 120 W max, 200 Watt peak power |
| Impedance | 4 ohm |
| Frequency range | 50 – 20.000 Hz |
| Crossover point (Hz) | 5500 Hz |
| Sensitivity | 88 dB (1W/1m) |
| Outer diameter of woofer | 165 mm (6,5″) |

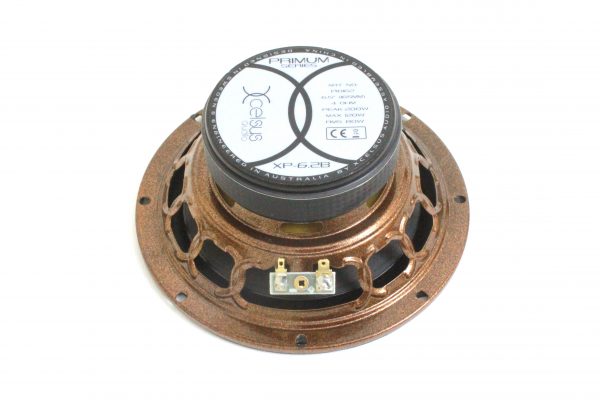

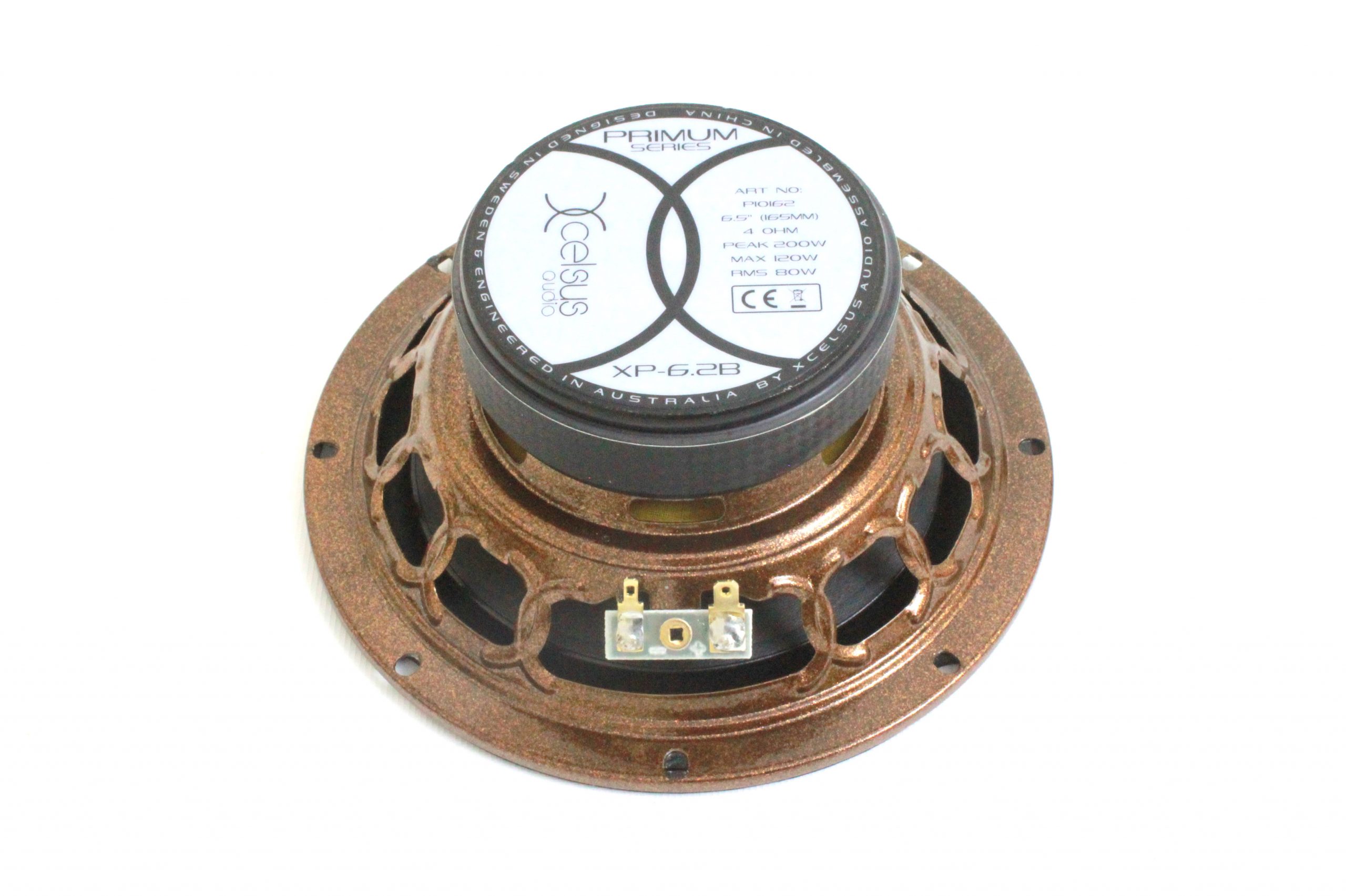

| Magnet size | 90 mm (3,54″) |
| Cone material | Paper / fibre composite mix |
| Mounting depth | 65mm ( 2,56″) |
| Crossover | Separate filter box |
| Mounting hole | 145 mm (5,75″) |
| Size of filter box | 120 x 65 x 33 mm |
| EAN Bar code | 0755838572266 |
