Description

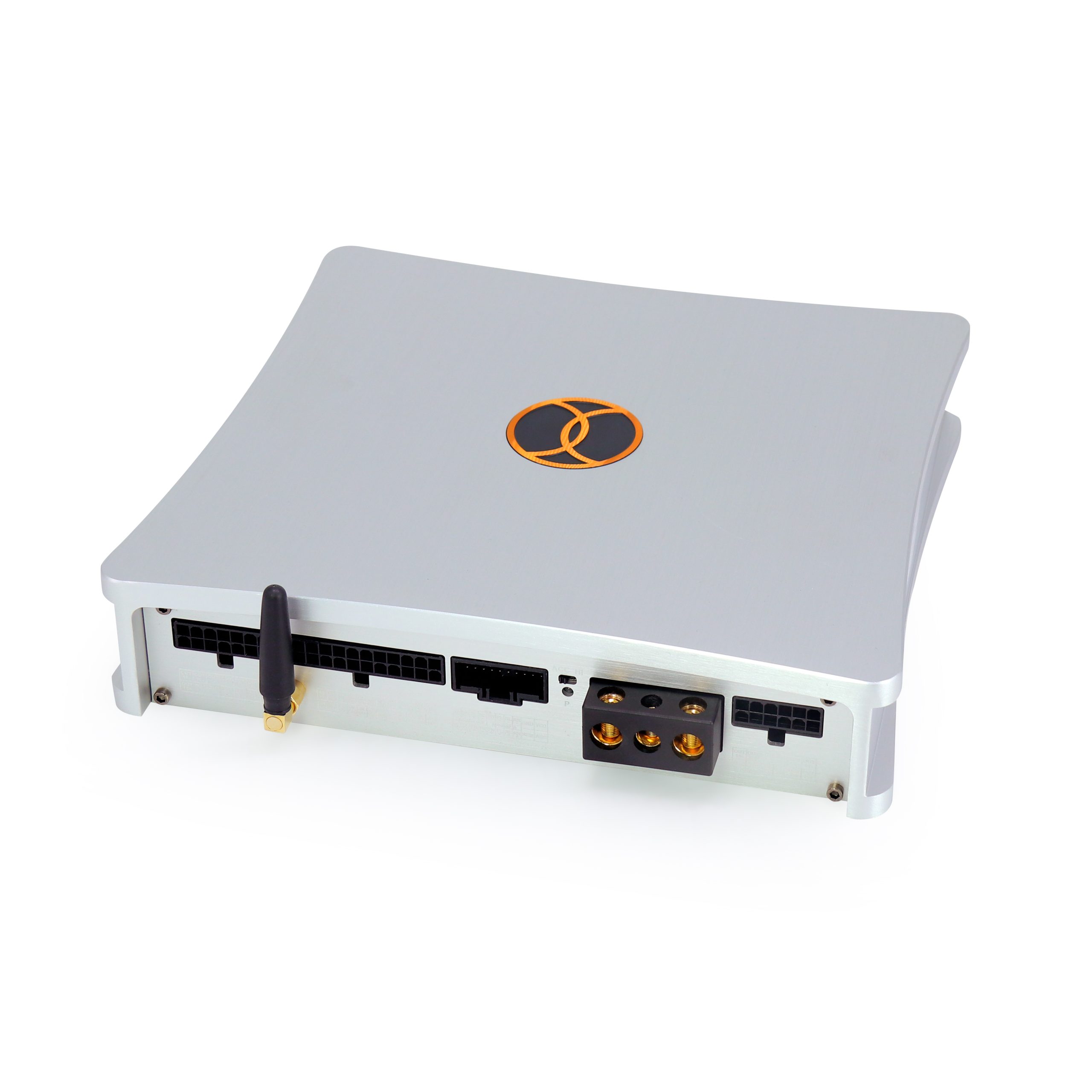

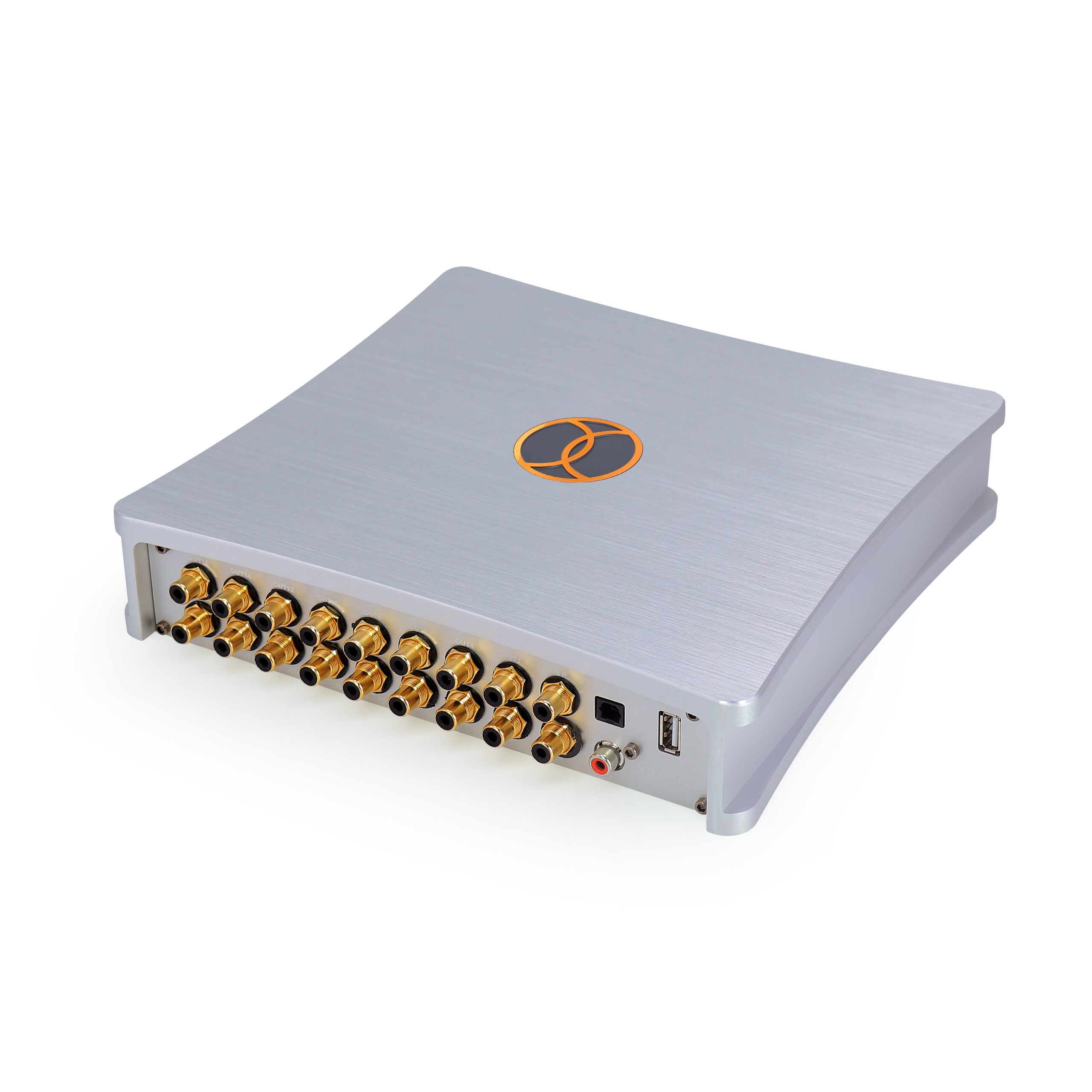

Unleash the full potential of your sound system with the XQA1615.1, a state-of-the-art DSP amplifier crafted for audiophiles who demand precision, power, and purity. Designed in Sweden, the XQA1615.1 combines cutting-edge digital signal processing with robust amplifier performance, ensuring your music is delivered with absolute clarity and depth. With 16 channels of pure DSP control, high-resolution audio processing, and robust output performance, this amplifier is a powerhouse for complex, multi-speaker configurations.
Whether you’re fine-tuning your car audio system or upgrading your setup, this amplifier provides exceptional flexibility, seamless connectivity, and crystal-clear sound reproduction across all frequencies.
| Specifications | |
|---|---|
| Type | DSP Amplifier |
| Power Supply | DC 10–16V |
| Start-up Mode | ACC or High Level (FL/FR channel) |
| Input Channels | 16 CH High-Level Input (28V p-p), 2 CH RCA Input (6V p-p) |
| Bluetooth | Bluetooth 5.2 |
| USB Support | MP3, WMA, WAV, FLAC, APE |
| Optical Input | Supported |
| Coaxial Input | Supported |
| USB DAC | Supported |
| Output Power (Channels 1–10, 16CH) | 50W × 11 |
| Output Power (Channels 11–14) | 150W × 4 |
| Output Power (Channel 15) | 300W × 1 |
| Low Level Output | 16 CH, 2V |
| SNR (Signal-to-Noise Ratio) | ≥93 dB |
| Channel Separation | ≥90 dB |
| Crossover Frequency | 20Hz – 20kHz |
| Crossover Rate | -6dB to -48dB |
| Equalizer | 20-band PEQ |
| Tuning Control Software | Android OS, Harmony OS, PC (Windows 10) |
| Country of Origin | Sweden |
